Gabion Iron Wire Mesh To Protect The Road
Home > Products > Iron Wire Mesh > Gabion Iron Wire Mesh To Protect The Road

Gabion Iron Wire Mesh To Protect The Road


  • Gabion Iron Wire Mesh To Protect The Road
  • Gabion Iron Wire Mesh To Protect The Road
  • Gabion Iron Wire Mesh To Protect The Road
  • Gabion Iron Wire Mesh To Protect The Road
  • Gabion Iron Wire Mesh To Protect The Road

Gabion Iron Wire Mesh To Protect The Road

    Terms of Trade: FOB,CFR,CIF,EXW
    Transportation: Ocean

Basic Info

Model No.: ss02-41

Product Description

Galvanized Gabion Iron Wire Mesh to protect the road

Specifations

Hexagonal galvanized gabion box material:
1) Galvanized steel wire: diameter 2.0mm-4.0mm, tensile strength >380Mpa, zinc: 200g / m2.
2) Zinc 5% Aluminum wire: diameter 1.0mm-3.0mm, tensile strength >380Mpa.
3) Coated galvanized steel wire: low carbon steel wire, pvc coated

Surface treatment:
Electric galvanized before or after weaving.
Hot dipped galvanized before or after weaving.

Galvanized Hexagonal Wire Netting Gabion Box
Opening(mm) Wire diameter (mm) Size
60x80 2.0-2.8

1x1x0.3 1x1x0.5
2x1x0.3 2x1x0.5
2x1x1 4x2x1
6x2x0.3 6x2x1
As your request

80x100 2.0-3.2
80x120 2.0-3.2
100x120 2.0-3.4
100x150 2.0-3.4
120x150 2.0x4.0


Hexagonal Wire Netting Gabion Box
Opening
(mm)
Wire Diameter(Metal Wire)
(mm)
Wire Diameter (PVC Coate)/
Inner/Outside(mm)
Strands
60X80 f2.0-2.8 f2.0/3.0-2.5/3.5 3
80X100 f2.0-3.2 f2.0/3.0-2.8/3.8 3
80X120 f2.0-3.2 f2.0/3.0-2.8/3.8 3
100X120 f2.0-3.4 f2.0/3.0-2.8/3.8 3
100X150 f2.0-3.4 f2.0/3.0-2.8/3.8 3
120X150 f2.0-4.0 f2.0/3.0-3.0/4.0 3

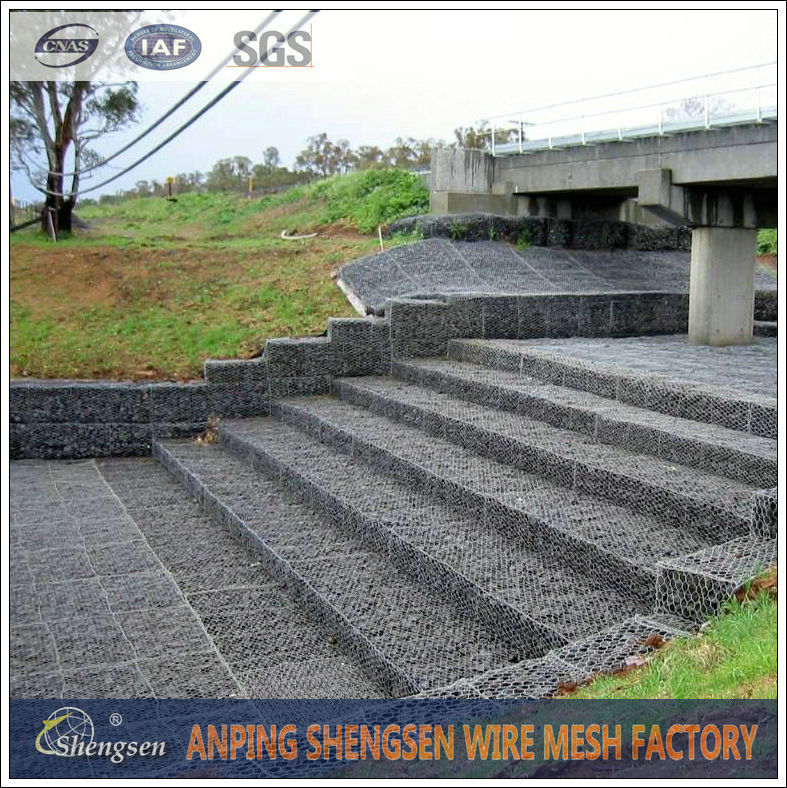

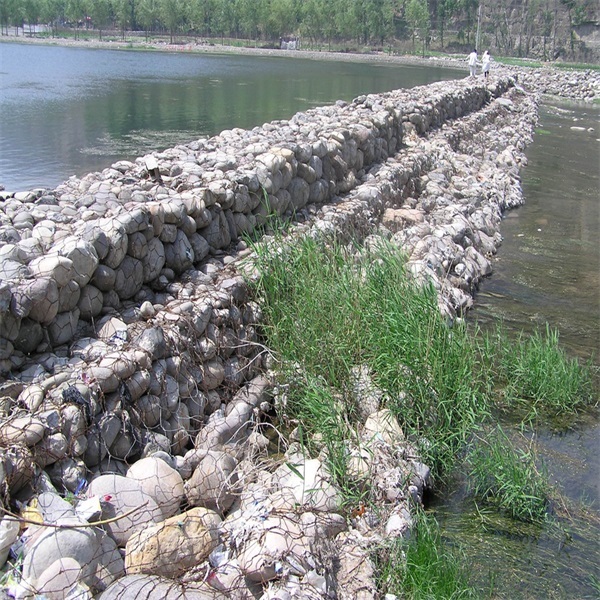

Application

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Bridge Protection
Water and soil protection
Coast protection
Seaport engineering
Strengthening structure of soil

our main products include Gabion Mesh,Gabion Mattress,Gabion Wall Baskets ,Pvc Coated Gabion Mesh,noise fence, Sound Barrier ,Expanded Metal Sheet,Aluminum Expanded Metal Mesh and etc.

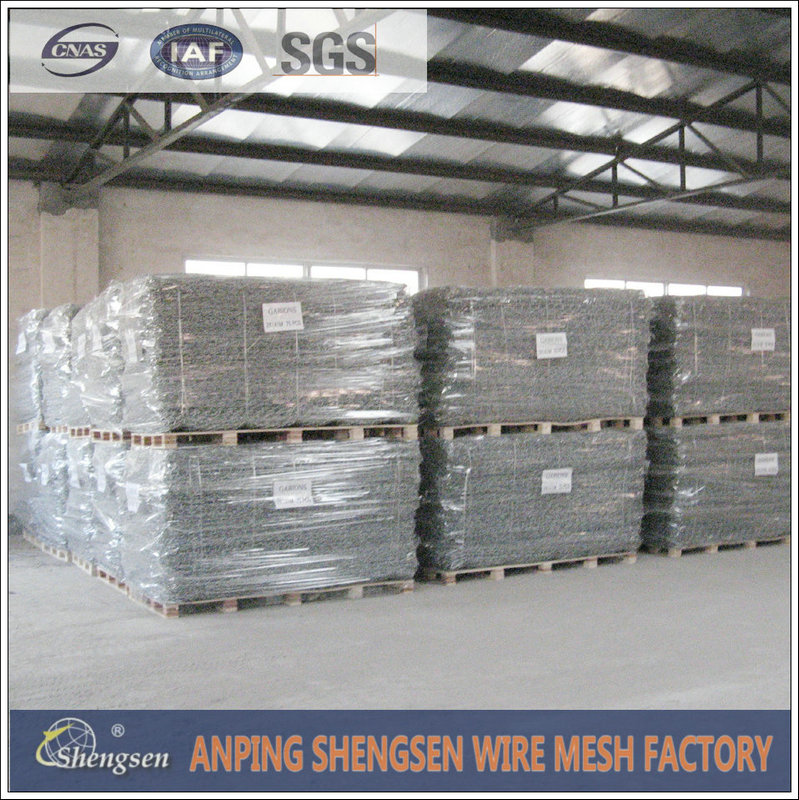

Packaging & Shipping

50-100 gabion wire mesh /per bundle,wrapped with 2 to steel strips, it is compressed and to be bundled,then with pallets together.It could be made to roll package,when you get the goods,you could cut to gabion box by yourself.we also could pack according to customers' requirements.

Advantage

Simple to install – Using unskilled labour.
Environmentally acceptable-The use of local rock and soils for backfill is encouraged, with the subsequent growth of vegetative cover made easy.
Flexible Nature – Able to move and settle without failure, even on unstable soils.

Our services

1. Various samples can be provide.

2. The FOB,CIF, CFR price are all available.

3. If there are unqualified products, support for replacement.

4. The package detail, mesh size can be customized.

Anping shengsen metal wire mesh products co,. ltd



Anping shengsen metal wire mesh products co.,ltd Set up the production base in Anping County,and it is a very famous place in the world,called the Hometown of Wire Mesh in China.

Recurring to the advanced condition and efforts of all the workers, our factory has developed to be a corporation with rich technique power and complete test measure.We have much experience in wire mesh industry.We are specializing in the production and export of wire meshes, including Gabions, Expanded Metal Mesh and sound barrier and so on.It is a fast-developing company with more than 500 employees at present.

These products are produced by us are sold well to the U.S.A., Japan, Turkey, Mexico and some other countries.
