sintered porous stainless steel filters
Home > Products > Stainless Steel Ring Mesh > sintered porous stainless steel filters

sintered porous stainless steel filters


  • sintered porous stainless steel filters
  • sintered porous stainless steel filters
  • sintered porous stainless steel filters
  • sintered porous stainless steel filters
  • sintered porous stainless steel filters
  • sintered porous stainless steel filters

sintered porous stainless steel filters

    Unit Price: 10 USD
    Min. Order: 1 Piece/Pieces
    Packaging: Standard waterproof paper and plastic film, in wooden cases suitable for ocean freight.
    Transportation: Ocean,Land,Air,Express
    Certificate: ISO9001
    HS Code: 84219990.90
    Port: tianjin,xingang,qingdao

Product Description

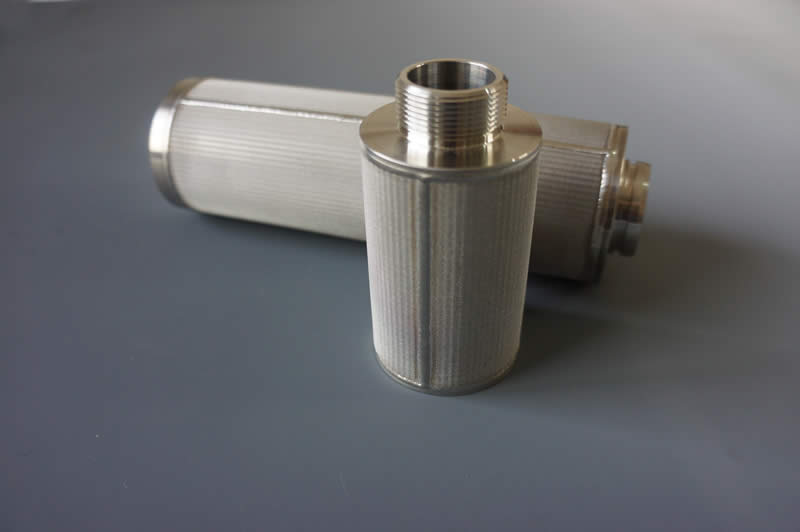

Stainless Steel Sintered Mesh Element

Features

• Uniform, accurately and stability filtering;

• Good permeability and strength;

• High temperature resistance, corrosion resistance;

• Easy cleaning;

• No immigration of materials.


Technical

• Filtration rate: 0.5- 200μm;

• Work Temperature: -50℃-800℃;

• Size: 14-800mm OD, 10-1200mm Length

• Hanke Filter can be customized.


Application

• Polyester

• Petroleum

• Chemical

• Pharmaceutical

• Food and beverage, oil

• Catalytic recycling.


Model Length Diameter M Filter Area

Filter Rate

(μm)

Filter Material
CF-14/65-R 65 14

M10x1P

M14x1P

M14x1.5P

1/4”NPT

0.002㎡


0.5, 1, 2, 5, 10,

15, 20,

30, 40, 75

Stainless Steel Sintered

Mesh,


CF-14/25-R 250 14 0.01㎡
CF-14/500-R 500 14 0.022㎡
CF-14/1000-R 1000 14 0.044㎡



Model Length Diameter M Filter Area

Filter Rate

(μm)

Filter Material
CF-25/250-R 250 25


M20x1.5P

0.019㎡


0.5, 1, 2, 5, 10,

15, 20,

30, 40, 75


Stainless Steel Sintered

Mesh,


CF-25/500-R 500 25 0.039㎡
CF-25/1000-R 1000 25 0.078㎡
CF-25/500-R 500 30

M20x2P

M20x2.5P

M28x2P

0.046㎡
CF-30/1000-R 1000 30 0.093㎡
CF-30/1500-R 1500 30 0.140㎡




Model Length Diameter M Filter Area

Filter Rate

(μm)

Filter Material
CF-50/250-R 250 50 Sealing Ring or Flange 0.038㎡


0.5, 1, 2, 5, 10,

15, 20,

30, 40, 75


Stainless Steel Sintered

Mesh,

(with perforated tube or spring inside)


CF-50/500-R 500 50 0.078㎡
CF-50/1000-R 1000 50 0.150㎡
CF-60/500-R 500 60 0.094㎡
CF-70/500-R 500 70 0.108㎡
CF-75/500-R 500 75 0.115㎡
CF-90/500-R 500 90 0.140㎡
CF-150/500-R 500 150 0.230㎡




Model Length Diameter M Filter Area

Filter Rate

(μm)

Filter Material
CF-16/390-R 390 16

M16x1.5P

M33x1.5P

M33x2P

M55x2P

0.02㎡


0.5, 1, 2, 5, 10,

15, 20,

30, 40, 75


Stainless Steel Sintered

Mesh,

Stainless Steel Sintered Fiber Mesh,

Stainless Steel Wire Cloth


CF-50/500-R 500 50 0.07㎡
CF-63/750-R 750 63 0.15㎡
CF-62/266-R 266 65 0.05㎡
CF-70/500-R 500 70 0.10㎡
CF-70/1000-R 1000 70 0.21㎡
Sintered Filter
ANPING HANKE FILTER TECHNOLOGY CO

  • 1
  • 2
  • 3
  • 4


Hanke has clients worldwide buying its quality wire Mesh Filter elements. Many of them are at the forefront in their industries offering solid and liquid filtration system. Our goal is always to provide solutions of the highest possible quality to air filter system, water treatment system and powder filter system.

We started to produce wire mesh filters in 1998. On the basis of 19 years history in filtration elements industry,which specialized in metal pleated filters,filter media and tube filters and perforated filters.

With the development of business and plan of the company,we build up the new company as Anping high technology filter company which gets the right of exportation and importation in 2012. In 2013, we approved by ISO 901 certificate.

Hanke filter is engaged in stainless steel filters,pleat filters,sintered filters,tube filters and other filter products.Our aim is focusing on filter elements only,design and produce high-tech filters.

Under fierce completion and new economy model,we try to find out new customer service way and try to be a different filter company.Then we have our own brand.

Our mission is to make our users production much more efficient and more clean by using our filters.To make clean environment and make people much more healthy.
